Le nostre macchine in stock - subito disponibili!

The safety check for raw goods

The SC-B 30 X-ray scanner is the ideal entry point for the quality X-ray inspection of incoming raw material. Foreign body detection at the beginning of the production process leads to optimisation of the line efficiency by reducing product losses and downtimes. In contrast to the end-of-line check, contamination is removed before processing, thus reducing the number of products ejected.

Large foreign bodies, such as metal parts, can damage machines and may be split into many small, undetectable fragments. X-ray inspection at the beginning and end of the production line supports monitoring of the production process. Foreign bodies, which appear at the end of the line, are frequently the cause of damage to production machines. Once the source of the foreign body has been found, it is possible to initiate repairs or the procurement of spare parts at an early stage.


Features

• Total lenght incl. covers: 1,490 mm
• Working height: Infeed funnel: 1,290 - 1,390 mm | Rectangular outfeed flange: 550 - 650 mm
• Working direction: right - left
• Additional features:
  - incl. Rejection unit (Airblast sorting into VA box)
  - Compressed-air storage
  - Filling level control for rejection box
  - Additional cooling unit
  - Access for remote diagnose


Price

69,268.00 €

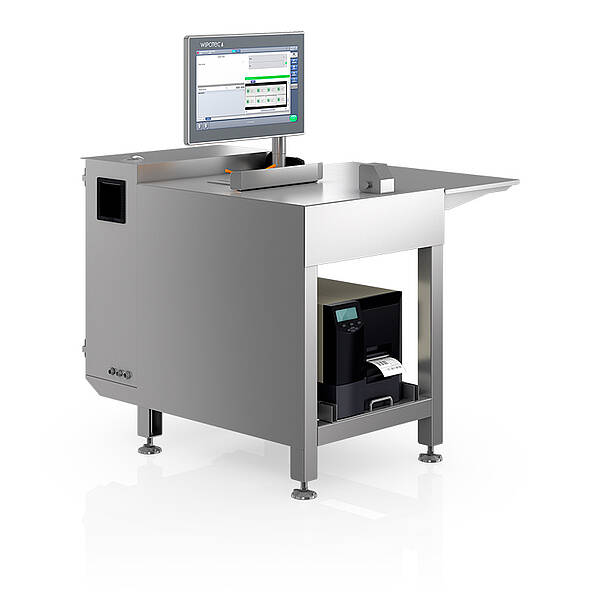

Aggregation to shipping cartons

The TQS-CP, which is used for aggregation, can either be connected to a TQS-HC-A in a production line via the Line Manager or operate autonomously to aggregate products that have already been serialized on other lines. The user-friendly system features a full-surface camera with automatic height adjustment, as well as the ability to create layouts either directly on the central display or send them from a separate Label Manager via the standardized Level 3 interface. And of course, all components are fully integrated, including thermal transfer label printers and handheld scanners for aggregation to shipping cartons.

Features

• Total length of machine: 1,500 mm
• Max. shipping carton dimensions (LxWxH): 600 x 400 x 400 mm
• Max. shipping carton weight: 30 kg
• Incl. Line Manager plus hardware and software for aggregation to shipping cartons (aggregation to pallet also possible on request)


Price

82,000.00€

Downloads

X-ray inspection for standing products

If you have to check standing products for impurities by means of X-rays and ensure the correct fill levels, then the models of the SC-S series are the perfect choice. These models follow a component design that enables an easy, space-saving integration with any existing production line. The sideview scanner reliably checks cans, bottles, composite packaging, paper, or plastic containers.


Features

• Total lenght incl. covers: 3,166 mm
• Working height: 800 - 900 mm
• Working direction: left - right
• Additional features:
  - Height-adjustable beam
  - transparent for X-Ray
  - incl. Rejection unit (Short stroke pusher onto jam conveyor)
  - Filling level control for jam conveyor
  - Light barrier in the bad channel
  - Software moduel "Fill level control"
  - Access for remote diagnose


Price

129,294.00 €

Downloads

Cookies in Carton box

Checkweighers of the HC-M series targetting medium throughputs and also high accuracies. They employ our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell as well. This HC-M-2000 has a cross weighing range of 1500 g and a sampling rate of 1 ms. Originally considered for products from 125 - 180 mm length. Three conveyor belts. Belt wifth 300 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 1,500 g
• Working direction: left - right
• Ejection via pusher


Price

24,500.00 €

Downloads

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length. Four conveyor belts. Belt wifth 120 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length. Four conveyor belts. Belt wifth 120 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length. Four conveyor belts. Belt wifth 120 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length. Four conveyor belts. Belt wifth 120 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

Cookies in Carton box

Checkweighers of the HC-M series targetting medium throughputs and also high accuracies. They employ our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell as well. This HC-M-2000 has a cross weighing range of 1,500 g and a sampling rate of 1 ms. Originally considered for products from 125 - 180 mm length. Three conveyor belts. Belt wifth 300 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 1,500 g
• Working direction: right - left
• Ejection via pusher


Price

24,500.00 €

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

Combined solution for pouch bags

This HC-A Checkweigher combines an metal detector with an openening 200/150. Allowing for pouches up to approx. 70 mm height. Designed to run product length of up to 200 mm at throughputs of up to 220 ppm. It incorporates our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Fully loaded, many options.


Features

• Total length: 2,170 mm
• Conveyor belt wifth: 120 mm
• Weighing conveyor length: 350 mm
• Working height: 900 - 1,050 mm
• Emergency stop
• Working direction: right - left
• Ejection by two power air nuzzles


Price

52,000.00 €

Batch coding and checkweighing of folded boxes

This TQS system is an ultra-compact solution with high-resolution TIJ printer and camera inspection to get ready for 2D in Retail. Additionally, it includes a checkweigher without requiring more space. Print and verify 2D codes incl. the GS1 application identifiers and even the GS1 Digital Link to profit from the vast range of new possibilities (https://www.wipotec.com/en/marking/2d-codes-in-retail).


Features

• Total length of machine: 1,100 mm
• Minimum pitch: 200 mm
• Folded box dimensions (LxWxH): 30-120 x 40-200 x 20-150 mm
• Folded box weight: 50 - 400 g
• Max. print layout size (LxH): 50 x 25.4 mm


Price

65,500.00 €

Best entry with high-tech X-ray scanner

The SC-E is the perfect entry to the world of ultra-modern X-ray inspection systems and the associated high quality product line of Wipotec.

Designed and developed to meet the most stringent requirements of foreign body detection, with an optional comprehensive software package, the scanner becomes an excellent all-rounders that reliably performs count, completeness, fill-level checks, and mass determination.

The SC-E product series is more than a good investment for all users who are looking for highly professional foreign body detection. It represents a well-engineered, technical and economical solution at a highly competitive price.


Features

• Total lenght incl. covers: 1,800 mm
• Working height: 850 - 950 mm
• Working direction: left - right
• Additional features: Access for remote diagnose


Price

55,121.00 €

Downloads

Top performance with the greatest flexibility

The globally successful SC product line meets the highest standards of modern quality management. Nothing is left to chance in terms of process safety and hygienic design. A high performance camera detector equippedwith HD-TDI technology ensures high resolution and sharp X-ray images, while providing the optimal basis forthe image processing software developed at Wipotec. The minimal faulty rejection rate combines with the maximal detection accuracy to provide the greatest possible safety.

All of the X-ray scanners from Wipotec havethe same familiar and convenient userinterface found in the checkweigher line. Designed for protection class IP65 withfull stainless steel construction, the systemfeatures a balcony design and sloped surfaces that, together with the C-shapedand weldless product chamber, enablethorough cleaning quickly and easily.


Features

• Total lenght incl. covers: 2,260 mm
• Working height: 750 - 850 mm
• Working direction: left - right
• Additional features:
  - incl. Infeed and outfeed conveyors in NT30
  - Access for remote diagnose


Price

71,880.00 €

Downloads

Separate standing unit for offline serialization

This solution for offline marking of flat cartons enables cost-efficient serialization of folding boxes that can then be erected and filled with a specific pharmaceutical product. This machine is equipped with a high-resolution TIJ printer to mark from the top side as well as a camera to assess the print quality. As a centralized serialization solution, TQS-SP for flat boxes is a welcome alternative for inline serialization for small and medium batches. The TQS-SP is ready for use immediately after connection via our open and standardized interface to a Level 3 system of your choosing.


Features

• Total length of machine: 2,900 mm
• Flat carton dimensions:
    - min. 45 x 64 mm
    - max. 430 x 372 x 5 mm
• Max. print layout size (LxH): 50 x 25.4 mm


Price

89,500.00 €

Downloads

Separate standing unit for offline pre-serialization of labels

With our TQS-LI, you are able to mark labels with e.g. a serialized DataMatrix code via a fully integrated TTO printer as well as a full surface camera that assesses the print quality. The label roll is placed on the unwinder, good labels transfer to the rewinder, incorrect labels are removed manually. The rewound label roll can be used in a production line with a labeler without a TTO printer if batches require batch coding or serialization.


Features

• Total length of machine: 1,650 mm
• Max. label roll diameter: 410 mm
• Max. label release liner width: 310 mm
• Max. print layout size (LxH): 53 x 55 mm


Price

60,000.00 €

Downloads

All-in-one serialization solution for all countries

The TQS-HC-A is the first choice for serialization and is appreciated by many customers around the world for its multiple functionalities in a small space and its easy operation. All components can be operated via a central user interface and are fully integrated: high-resolution TIJ printers, camera control of the printed data without the need for teach-in, Tamper-Evident labeling, top labeling (for Bollini or for serialization incl. print engine) and checkweighing. Also, you'll be able to check the code grading via the integrated code verifier and send it to your Level 3 system with the report.


Features

• Total length of machine: 1,800 mm
• Minimum pitch: 200 mm
• Folded box dimensions (LxWxH): 30-120 x 100-200 x 10-150 mm
• Folded box weight: 20 - 400 g
• Max. print layout size (LxH): 50 x 25,4 mm


Price

162,000.00 €

Downloads

Top performance with the greatest flexibility

The globally successful SC product line meets the highest standards of modern quality management. Nothing is left to chance in terms of process safety and hygienic design. A high performance camera detector equippedwith HD-TDI technology ensures high resolution and sharp X-ray images, while providing the optimal basis forthe image processing software developed at Wipotec. The minimal faulty rejection rate combines with the maximal detection accuracy to provide the greatest possible safety.

All of the X-ray scanners from Wipotec havethe same familiar and convenient userinterface found in the checkweigher line. Designed for protection class IP65 withfull stainless steel construction, the systemfeatures a balcony design and sloped surfaces that, together with the C-shapedand weldless product chamber, enablethorough cleaning quickly and easily.


Features

• Total lenght incl. covers: 1,910 mm
• Working height: 850 - 950 mm
• Working direction: left - right
• Additional features:
  - incl. Infeed and outfeed conveyors in VA30WA
  - Access for remote diagnose


Price

79,242.00 €

Downloads

Bottle labeling incl. serialization functionality

The TQS-Bottle uses a TTO printer to mark the label with batch-specific information or even a serialized DataMatrix code. A fully integrated camera then assesses the print quality and can also perform a mix-up check of the labels. The system comes with the possibility to reject incorrect labels before application. Additionally, the bottles are weighed before labeling which allows bottles with incorrect weight to not be labeled and rejected accordingly. Good labels are wrapped around the bottles which are then transported to the next machine in line.


Features

• Total length of machine: 2,640 mm
• Max. print layout size (LxH): 53 x 55 mm
• For bottle dimensions (DxH): 30 - 110 x 30 - 150 mm
• Wrap-around labeling via: Application belt
• incl. 1 infeed screw for product separation (add. on request)


Price

142,000.00 €

Downloads

Made for larger products demanding high cleaned environment

For those who work with open products. For those who have heavier weights to be verified and checked. The HC-M-WD-SL serves you in any demanding wash-down environment (high pressure clearner). The well-designed performance features of the HC-M-WD-SL model satisfy all cleaning criteria and the most stringent hygienic requirements of the food industry.

Rounded surfaces and defined drip edges in combination with an open design and protection class IP69K provide the best conditions for optimal hygiene.


Features

• Total length: 800 mm
• Weighing conveyor length: 400 mm
• Working height: 730 - 800 mm
• Gross weight range: 30,000 g
• Working direction: left - right
• Ejection: electrical dry contact
• Emergency stop
• Single wire identification
• Ethernet interface


Price

18,000.00 €

Perfect weight control of folded boxes

This HC-A Checkweigher is configured to serve applications in the pharmaceutical industry. It is equipped with a dedicated top-bottom conveyor allowing  precise product transfer of folded boxes from the upstream cartoner. The HC-A is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. It comes with Active Vibration Compensation (AVC) for minimising weight reading disturbances. Originally considered for products from 40 - 85 mm length it is build with small roller diameters (NT 17).


Features

• Total length: 1,620 mm
• Weighing conveyor length: 200 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: left - right
• Ejection via power air nozzle
• Emergency stop
• Single wire identification
• XML interface


Price

26,500.00 €

Downloads

The 3-in-1 Scale Solution for Greater Throughput

The HC-FL-2 catchweigher is a combination of two single-platform scales in line. Both scales work simultaneously and independently of each other. The machine is ideal for applications where high belt speeds and top throughputs are required - perfect for the CEP sector.


Features

• Transport speed up to 2,0 m/s
• Weighing range up to 60 kg
• Conveyor dimensions:
• Weighing conveyor 1 = 900 x 1,000 mm (L x W)
• Weighing conveyor 2 = 1,200 x 1,000 mm (L x W)
• Working height range 800 – 900 mm
• Two single-platform scales which can be combined to a third virtual scale


Price

36,000.00 €

Downloads

Bulklow inspection and 6-fold sorting

Machine based on SC 3000, suitable for e.g. washed rice. 7 years warranty for VioX camera.


Features

• Rejection tunnel incl. cleaning port, prepared for “Jacob flange”
• Compressed air storage
• Access for remote diagnose


Price

53,200.00 €

Bulklow inspection and 6-fold sorting

Machine based on SC 3000, suitable for e.g. washed rice. 7 years warranty for VioX camera.


Features

• Rejection tunnel incl. cleaning port, prepared for “Jacob flange”
• Compressed air storage
• Access for remote diagnose


Price

53,200.00 €

Perfect entry

The SC-E is the perfect entry to the world of ultra-modern X-ray inspection systems and the associated high quality product line of Wipotec.

Designed and developed to meet the most stringent requirements of foreign body detection, with an optional comprehensive software package, the scanner becomes an excellent all-rounders that reliably performs count, completeness, fill-level checks, and mass determination.

The SC-E product series is more than a good investment for all users who are looking for highly professional foreign body detection. It represents a well-engineered, technical and economical solution at a highly competitive price.

Features

• Total lenght incl. covers: 1,800 mm
• Working height: 750 - 900 mm
• Working direction: right - left
• Sorting by means of conveyor stop


Price

45,666.00 €

Aggregation of serialized bottles

TQS-CP-Bottle can be set up directly at the outfeed of a labeling machine to verify the previously serialized labels on individual bottles via a 360° camera inspection. Bottles with non-readable or invalid serial numbers will be rejected. Good products are collected up to the target amount for the shipping carton and handed over to the operator for packing. Once the carton is full, the operator applies the automatically printed label to the carton and verifies it with a handheld scanner. In the final step, shipping cartons can also be manually aggregated to a pallet.


Features

• Total length of machine: 3,370 mm
• For bottle dimensions (DxH): 30 - 110 x 30 - 200 mm
• 360° camera system: incl. central adjustment unit for tool free adjustment of all 6 cameras to respective bottle diameter
• incl. 1 infeed screw for product separation (add. on request)


Price

102,500.00 €

Downloads

Compact and reliable inspection of standing products

If you have to check standing products for impurities by means of X-rays and ensure the correct fill levels, then the models of the SC-S series are the perfect choice. These models follow a component design that enables an easy, space-saving integration with any existing production line. The sideview scanner reliably checks cans, bottles, composite packaging, paper, or plastic containers.


Features

• Total lenght incl. covers: 2,600 mm
• Working height: 950 - 1,050 mm
• Working direction: left - right
• Additional features:
  - Curtain free
  - incl. Rejection unit (Short stroke pusher into VA Box)
  - Filling level control for rejection box
  - Labelling of single leads
  - Air pressure check
  - Light barrier in the good and bad channel
  - Access for remote diagnose


Price

100,254.00 €

Downloads

Compact and reliable inspection of standing products

If you have to check standing products for impurities by means of X-rays and ensure the correct fill levels, then the models of the SC-S series are the perfect choice. These models follow a component design that enables an easy, space-saving integration with any existing production line. The sideview scanner reliably checks cans, bottles, composite packaging, paper, or plastic containers.


Features

• Total lenght incl. covers: 2,700 mm
• Working height: 950 - 1050 mm
• Working direction: left - right
• Additional features:
  - Curtain free
  - incl. Rejection unit (Short stroke pusher into VA Box)
  - Access for remote diagnose



Price

78,770.00 €

Downloads

X-ray inspection and weighing

One machine - one operating panel - two applications

The system is designed as a low-wear curtainfree 2-track system without the risk of cross-contamination due to the absence of curtains.


Features

• Total lenght incl. covers: 3,340 mm
• Working height: 900 - 1,000 mm
• Working direction: left - right
• Track center distance: 220 mm
• Additional features:
  - Curtain free
  - 2 rejection units per lane


Price

83,237.00 €

Downloads

Space saving machine combination with integrated Metal Detector

This Checkweigher is for heavy load. It is a high-tech combination of dynamic checkweighing & metaldetection. Both together in one compact unit. Double functionality on one convyor only. Smallest food print.

Only one HMI to operate this combinet machine. The entire system is controlled via the menu-driven, user-friendly controls of the checkweigher. The central controlpoint conveniently manages the product parameters, protocols, and production statistics.


Features

• Total length: 1,500 mm
• Weighing conveyor length: 500 mm
• Working height: 570 - 630 mm
• Gross weight range: 30,000 g
• Working direction: right --> left
• Ejection system: belt stop
• MD openening 600 mm wide / 300 mm heigh
• Max product height: 195 mm
• Ethernet interface


Price

9,300.00 €
