Customer Story: Quality Assurance at BASF

For years now, Wipotec dynamic weighing systems have been incorporated in the various production facilities at BASF: as weighing kits integrated in fi lling systems or as stand alone checkweighers, for liquids and solids, bottles, canisters and bags, from portable containers to heavy-duty appliances. The compelling reason to use these systems is their precision and reliability. That’s why Wipotec’s engineers have been entrusted with a new challenge at BASF: Quality assurance of the seals. The canisters and bottles used for liquid crop protection products are handled by farmers, so BASF places great importance on both the quality and originality of the containers. In the production process, we must ensure that lids are closed and sealed on each and every container.

“Camera systems help us to verify quickly and easily that the cap leaves the production process in perfect condition.”

Eric Fritsche – Process Management BASF Agricultural Solutions

First, check that the caps are correctly fitted and that the tamper evident seals are intact. The method of choice was an optical inspection by camera, which is common practice. But a camera alone is not enough. Important:

• Brackets with reproducible height and angle adjustment
• Article-based parameters for exposure
• Signal exchange with the process line
• Product transport and speed
• Discharge with cross-checking
• User interfaces
• Interfaces and integrations with higher-level systems

All these factors influence the reliability of the inspection, the duration of set-up times and acceptance by the operators. As Eric Fritsche states: “We initially developed our own solutions. The difficulties were at the points of intersection, in the user interfaces and with integration. Wipotec gave us a solution by combining all modules in a single system.”

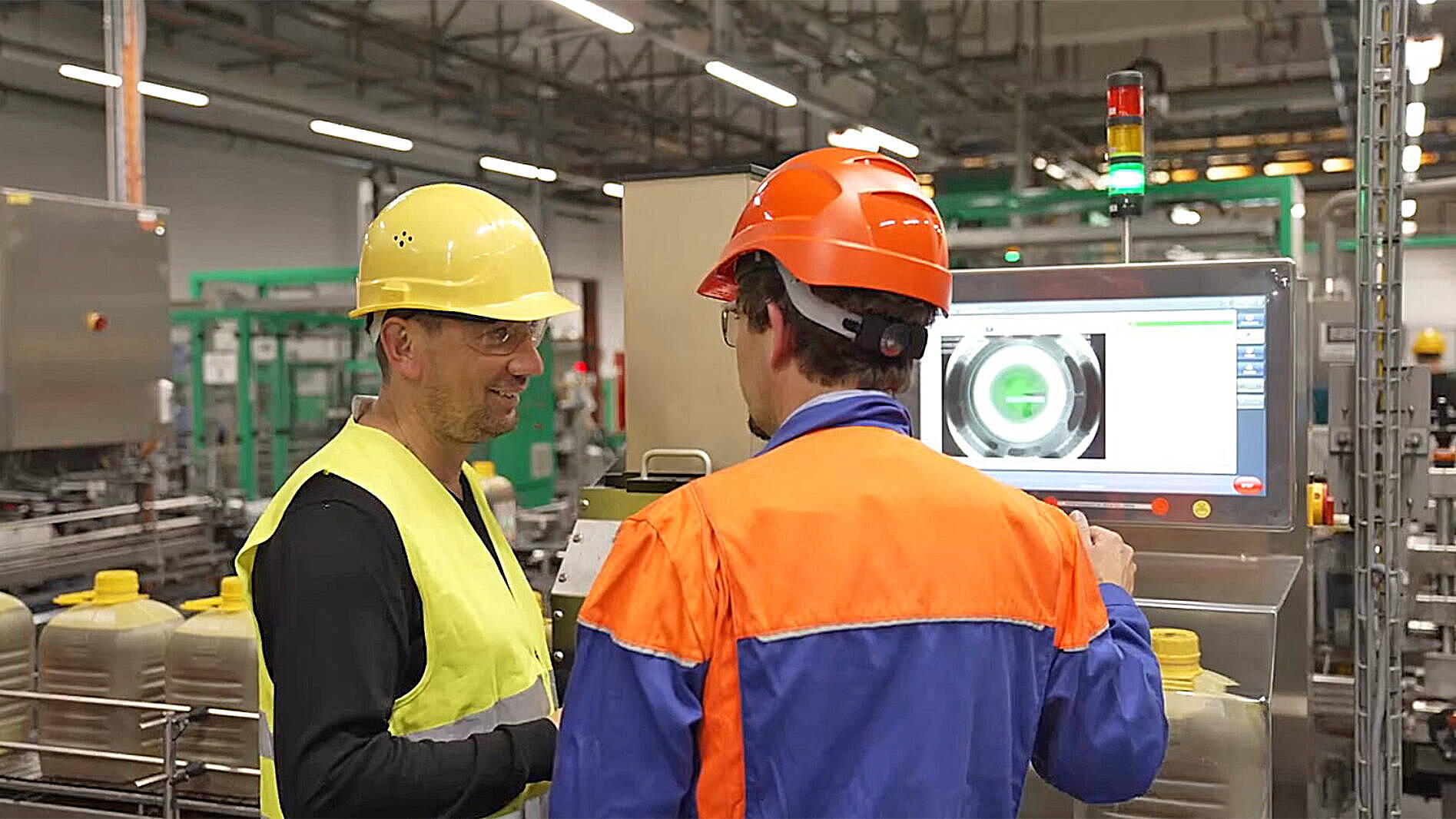

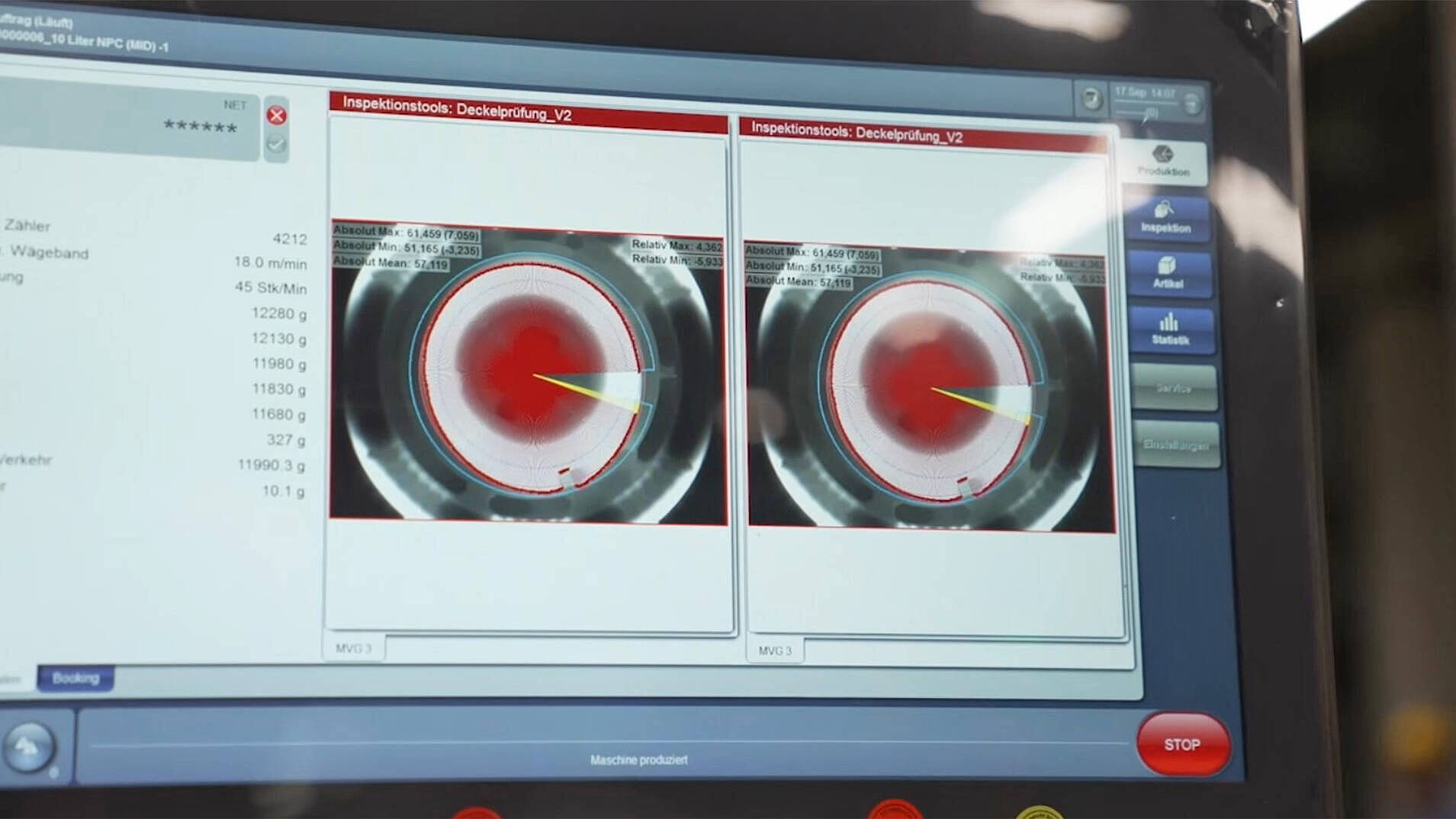

The most obvious advantage of the Wipotec system lies in the task it performs. The optical system specially developed for this application detects a 360° view of the lid from above. This image is evaluated by the software, which checks all parameters in a single step:

• Is the cap in perfect condition?
• Is the cap correctly fitted?
• Is the cap screwed on tight enough?
• Is the seal ring closed?

Any products that do not meet these criteria are rejected by the system. “This process makes sure that only products that are perfectly sealed go to market,” Eric Fritsche explains, stressing the importance of the data analysis provided by the system, which gives him proof that everything is entirely secure: “We can ensure sustainable quality.”

“The major advantage is the interaction of all modules. Wipotec offers a single user interface that combines everything, which in the past used to be provided by multiple suppliers.”

Eric Fritsche – Process Management BASF Agricultural Solutions

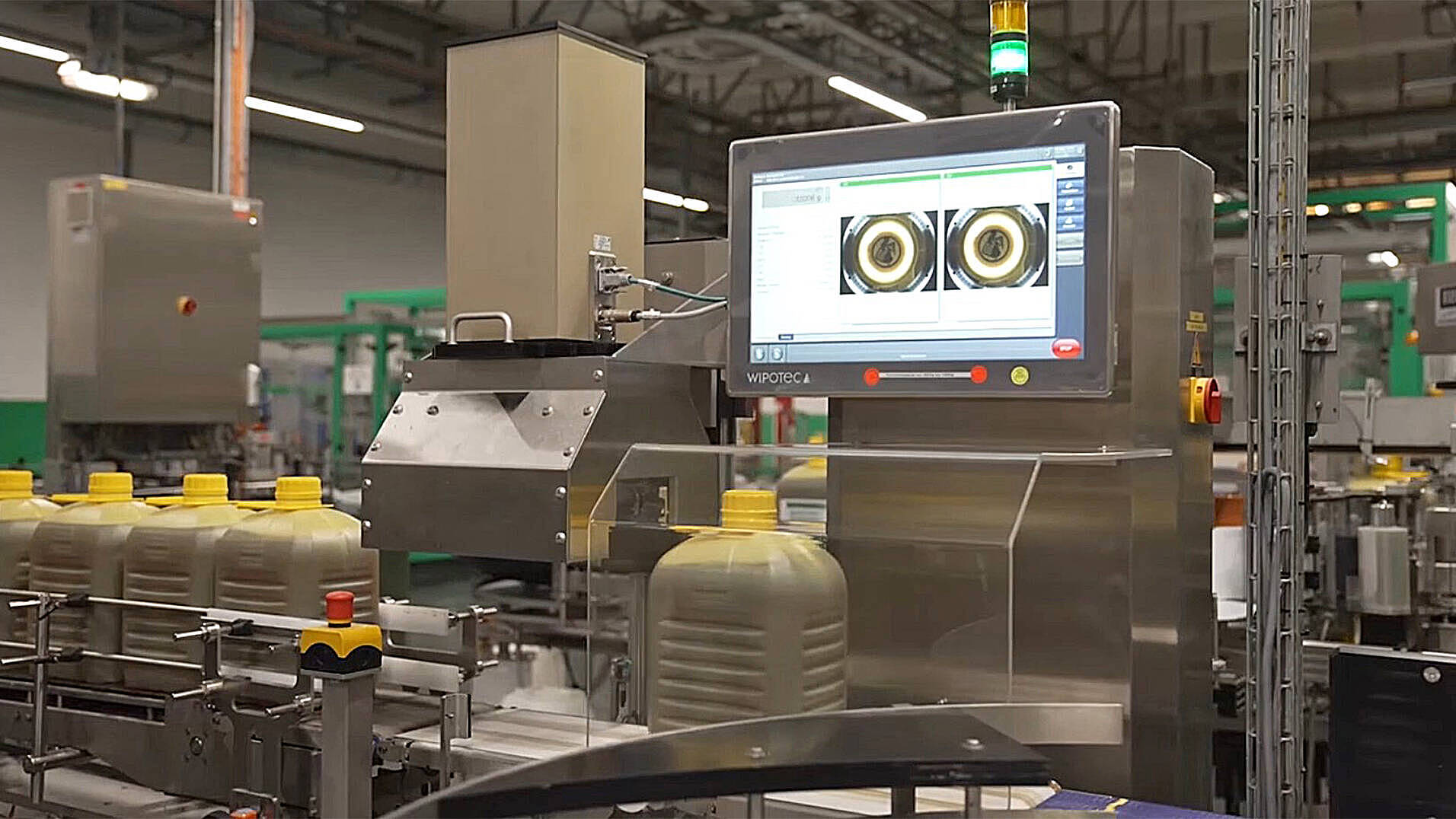

The basis for the system is the weight control, which, like all other tasks, is fully integrated into the unit. For Eric Fritsche and his team, this integration into a single user interface has many other advantages: “It is self-explanatory, operators quickly master it, we have minimum training requirements and hardly any queries from the team.” If the line is switched to a different product, the operator simply loads the corresponding article and all the defined parameters are set. This completely avoids adjustments, which are time-consuming and prone to error: “Set-up times are thus significantly reduced.”

The time slot was tight. Three days were available for installation and commissioning. Wipotec’s fully integrated approach also proved to be time-saving: “We were able to start producing straight away and errorfree,” Eric Fritsche recalls. “By combining these requirements, it is possible to integrate everything quickly and compactly.” Compared to using individual components, BASF also saves valuable line space, Fritsche reports. Vertical integration was achieved using a standardized OPC UA interface. The higher-level MES communicates with the Wipotec system using this interface. This gives BASF the option of scaling the system and integrating additional modules without the need for additional development measures.

The positive experience gained from years of collaboration with Wipotec is thus confirmed for BASF in this new type of project. The fact that service and maintenance are still provided from a single source is a practical advantage for Eric Fritsche: “We have short response times, receive assistance quickly and find pragmatic solutions.” This is something we can build on: “We place a great deal of importance on our quality standards and are continuously developing them,” Fritsche explains. In addition to the inspection systems for weight and seal, BASF is currently working with Wipotec on a solution for labeling:

• Presence verifi cation
• Mix-up control
• Positioning
• Clean and wrinkle-free application
• Verification of the legibility of text and codes

With a variety of more than 4,000 different labels, easy conversion of the article parameters is a vital step for both efficiency and safety. Just as in the case of cap inspection, Wipotec’s fully integrated approach is key here.

“Based on our many years of successful collaboration, we are open to working with Wipotec in the future on a fully integrated labeling and marking solution for our products.”

Eric Fritsche – Process Management BASF Agricultural Solutions
