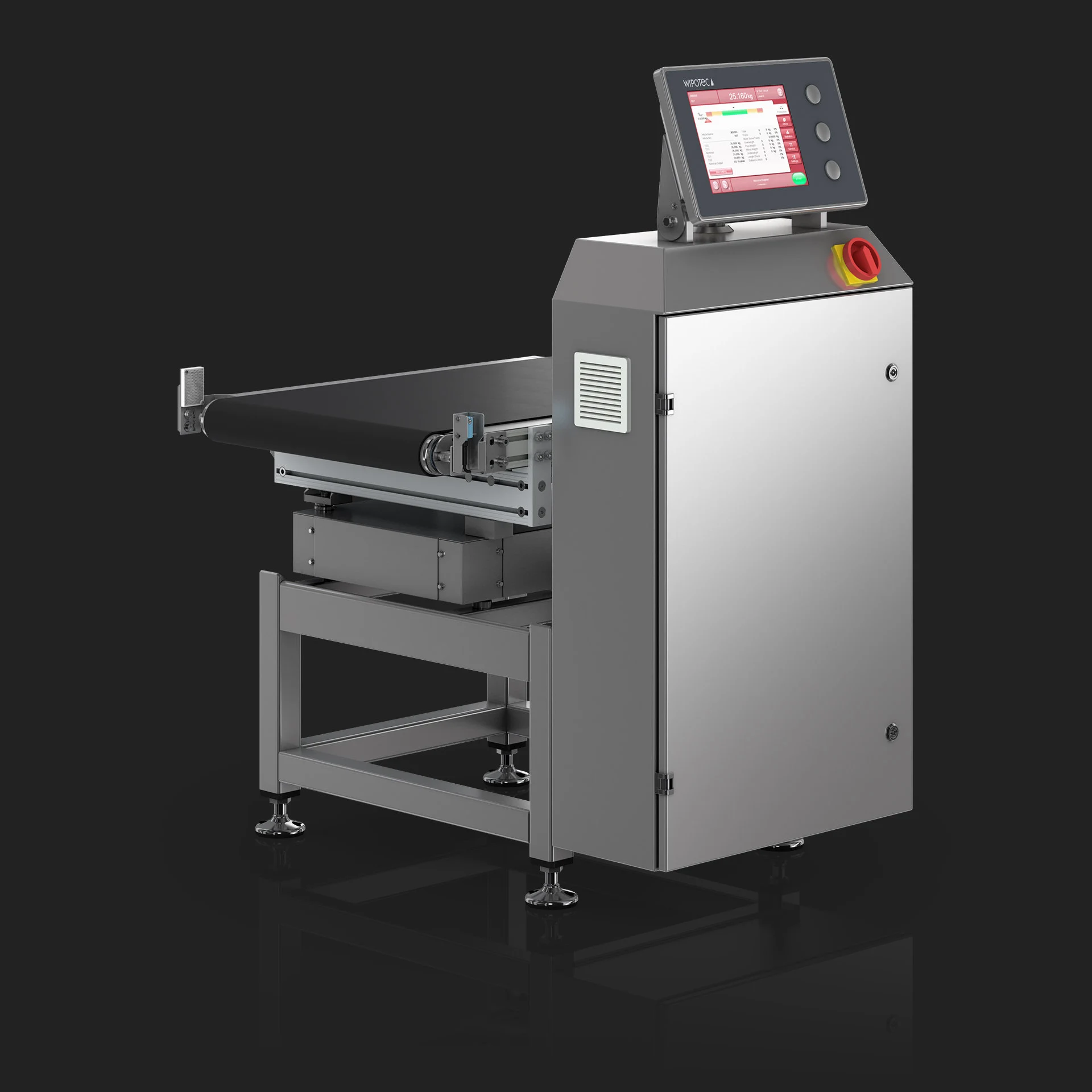

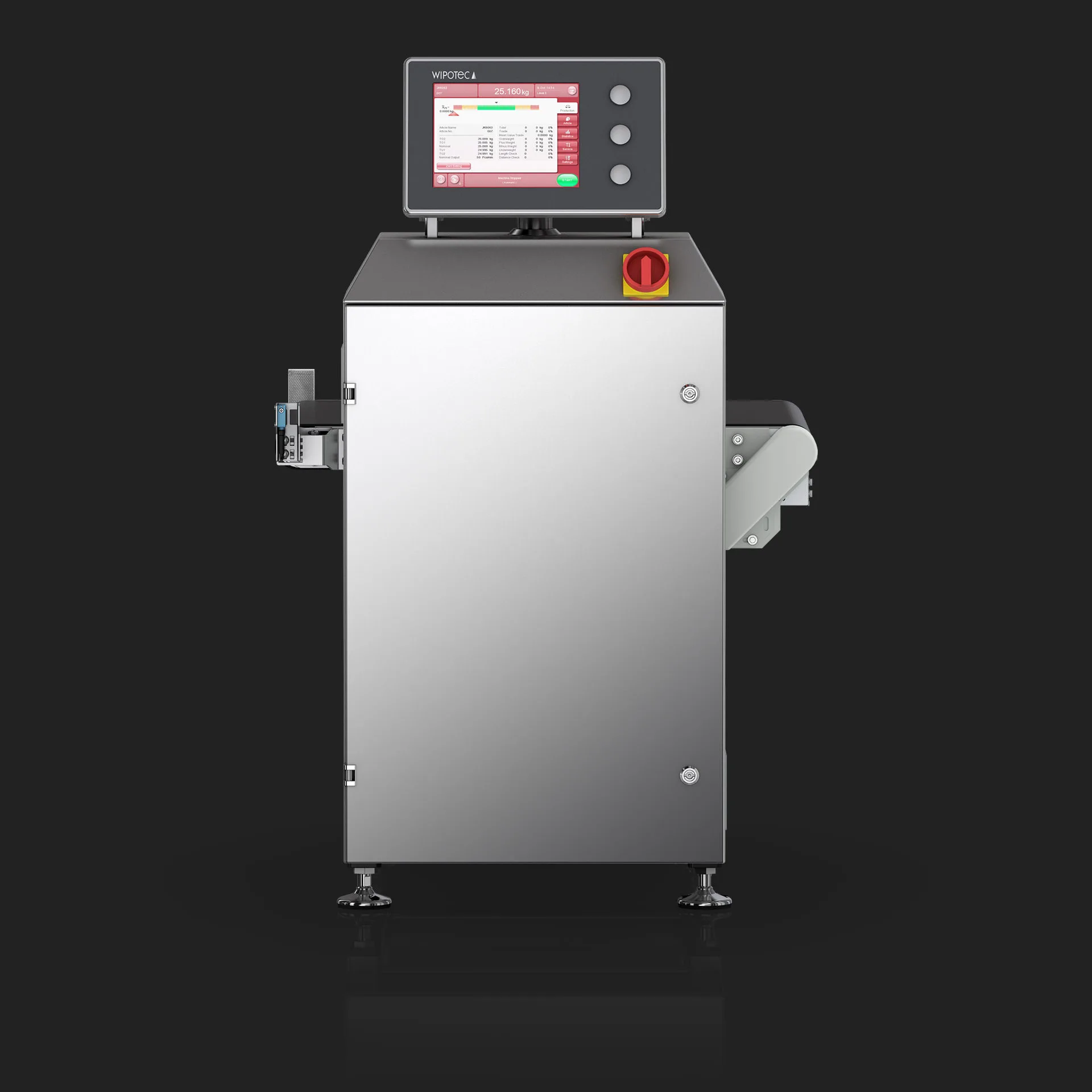

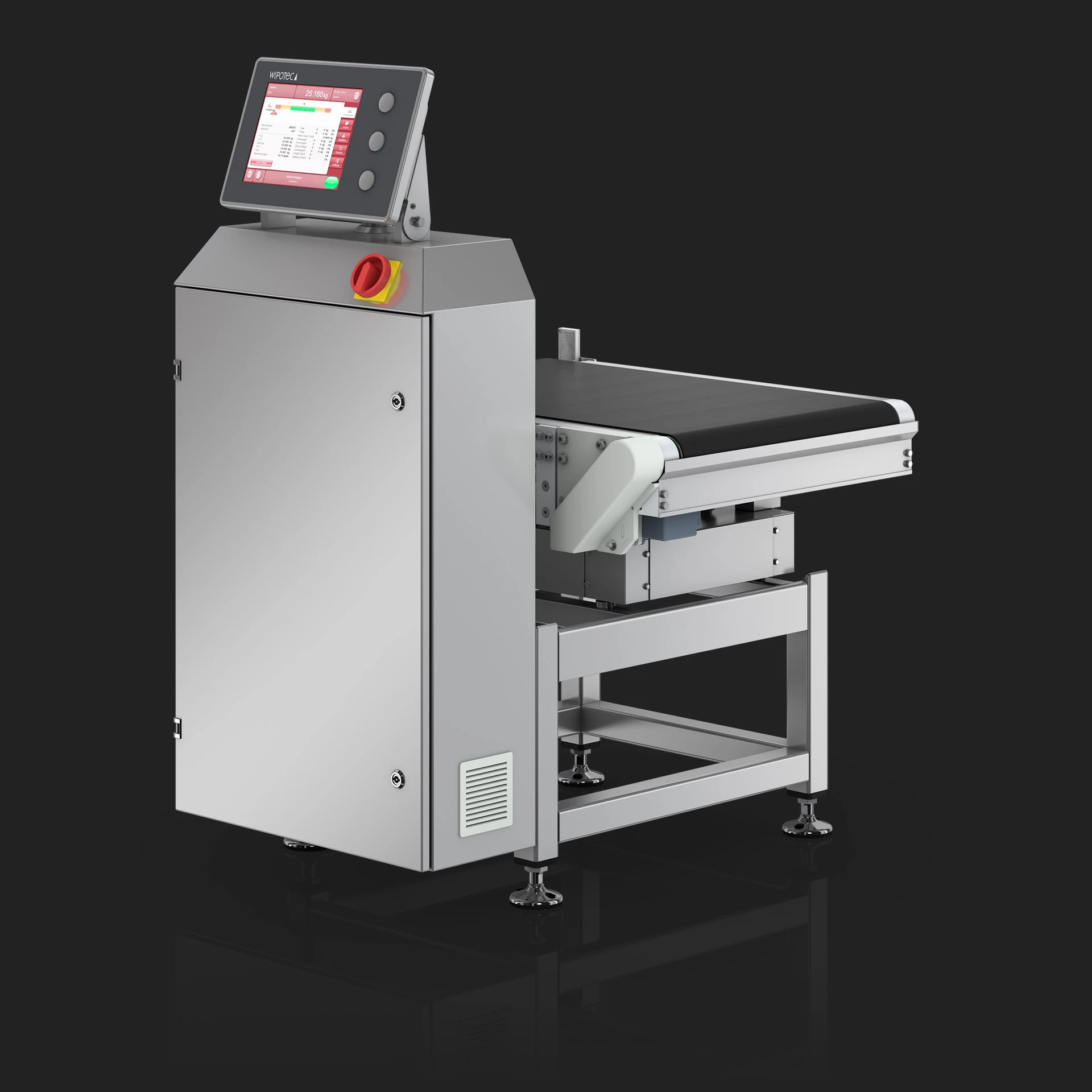

Heavy Load Checkweigher for Precise Weight Determination

For individual products weighing up to 60 kg, the Wipotec heavy load checkweigher HC-M-SL offers optimum conditions for highly dynamic checking of current product weights, or carrying out completeness checks. With belt speeds up to 2 meters per second, it can be integrated into high-speed production lines.

Key Features

  • Maintenance-free asynchronous motors
  • Type approval (MID)
  • Wipotec EMFR Weigh Cell
  • Easy, menu-driven operation via 10.4“ colour TFT display with touchscreen
  • Easy belt and conveyor replacement
  • Flexible integration into production lines
  • Line synchronisation with dry-contact I/O signals

Your Benefits

  • Complete system for precise weight determination/completeness check
  • Belt speeds up to 2 m/s
  • Easy, user-friendly operation x Low-noise conveyor system



The lightweight, patented conveyor system, and the carefully balanced drive concept produces a smooth running checkweigher design that ensures fast and safe product transport. The HC-M-SL is available in a wide range of conveyor length and conveyor width combinations, enabling individually tailored solutions for a wide range of product shapes.

A wide and sophisticated range of optional rejection and sorting devices (e.g. pushers, flap conveyor, etc.) are available for the heavy load checkweighers to reliably reject products with incorrect weight. All models are supplied as a complete system with base frame and control cabinet in stainless steel, and meets the specifications for protection class IP54.
