Weighing Kit
SW-D-FS – NT17 Band (IP44)

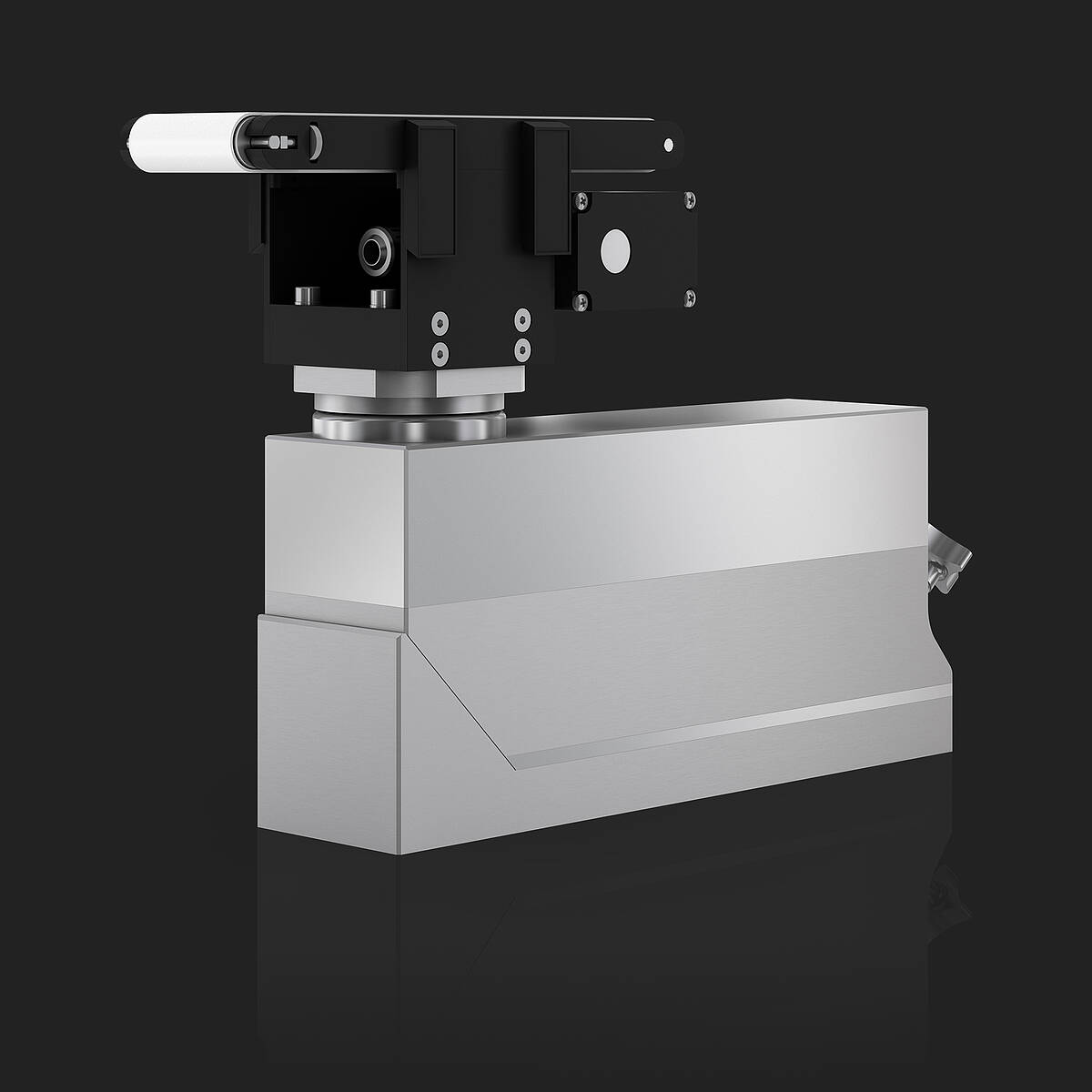

Weighing kits, consisting of an SW-D-FS Weigh Cell and NT17 conveyor of anodized aluminum, are extremely versatile. The compact design easily handles single lane or multilane tasks. Particularly in areas where small products with a small contact area or small diameter are to be weighed dynamically, the combination of SW-D-FS Weigh Cell and NT17 conveyor is the preferred choice
Weighing range up to 2,000 g
A conveyor with a roller diameter of only 17 mm makes the handling of such products easy. If the gap between the conveyors should still be too large and therefore affect product handling, it is possible to use knife-edge conveyors with a 5 mm roller diameter to minimize the gap still remaining between the conveyors. Adapting the system perfectly to various customer-oriented tasks depends on choosing the Weigh Cell’s optimum weighing and dead load range, the design of the conveyor dimensions and selecting the correct weighing belt for each application. The high level of vertical integration in-house and a wide product range are additional advantages.
Performance
Max. weighing range (g) | 2,000 |
Display value (g) | 0.00005 |
Max. dead load range (g) | 2,000 |
IP (protection class) | 44 |
To be used in
Filling and packaging machines for small fill volumes and small product dimensions
Checkweighers (for various sectors such as pharmaceuticals, chemicals, cosmetics, coffee pads, etc.)
Features
- Narrow and compact design
- Docking station
- Multilane applications starting from 72 mm centerline distance
- 17 mm roller diameter for optimum product handling
- Optional knife edge with 5 mm roller diameter
- Variable conveyor dimensions
- Stepless, maintenance-free servomotor, optimized for high-precision weighing applications
- Interface for communication with Weigh Cell and servomotor (CAN, RS422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT, Powerlink)
Technical Data
High Precision Weighing Conveyor
Belt Width | Conveyor Length |
---|---|
32 mm | 150 mm / 200 mm / 300 mm |
50 mm | 150 mm / 200 mm / 300 mm |
80 mm | 150 mm / 200 mm / 300 mm / 400 mm |
120 mm | 150 mm /200 mm |
Infeed and Outfeed
Belt Width | Conveyor Length |
---|---|
32 mm | 200 mm / 300 mm / 400 mm / 500 mm |
50 mm | 200 mm / 300 mm / 400 mm / 500 mm |
80 mm | 200 mm / 300 mm / 400 mm / 500 mm |
120 mm | 200 mm / 300 mm / 400 mm / 500 mm |
