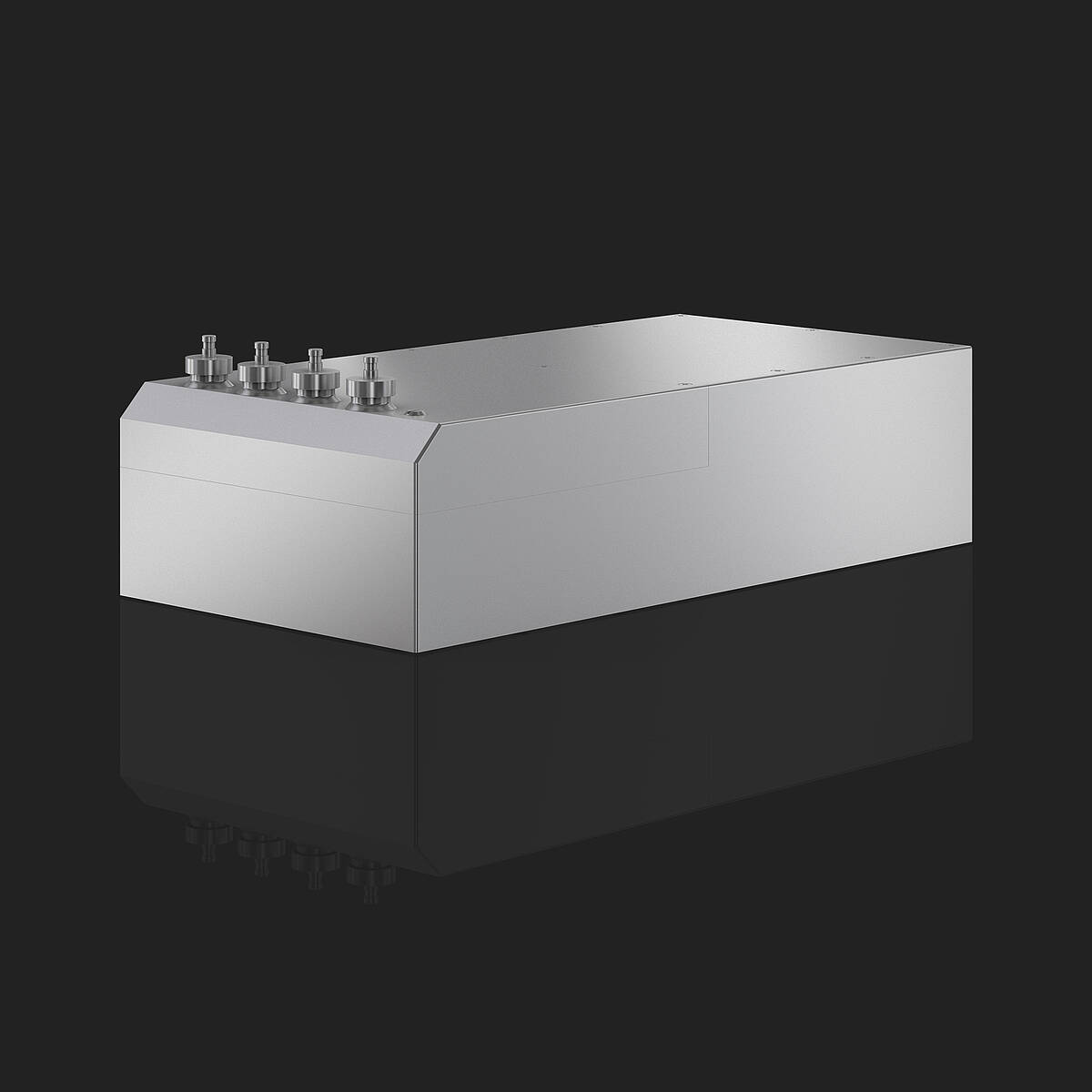

Weigh Cell MTC-HL-FS

The MTC-HL-FS Weigh Cell series covers a weighing range up to 250 g. They have been specifically designed as compact sensor components and are especially suited for applications in the pharmaceutical industry.

Weighing range up to 250 g

As a ready-for-connection installation component, the Weigh Cell supplies final weight values via a CAN interface as a standard feature. The integrated software filters can be configured in multiple ways thus allowing optimal adaptation of the weighing system to the relevant local conditions. The Weigh Cell's extensive command set enables easy control engineering integration.

Supplemented by a large number of options, as well as different weighing and dead load ranges, a wide variety of customer-specific versions can be implemented in addition to the standard.

When it comes to the number of tracks and the centerline distance in combinatoin with the weighing range and the design, all MTC-HL-FS systems are always customer specific and individual.

You need an individual solution? Please contact us.

Performance

Max. weighing range (g)250
Display value (g)0.001
Max. dead load range (g)100
IP (protection class)44

Technical Data

Features

  • Weighing range up to 250 g
  • Additive dead load range up to 100 g
  • Active Vibration Compensation (AVC)
  • High or flat type structured shape
  • Protection class up to IP44
  • Binary I/O channels with customer-specific functions
  • Interface 1: CAN, RS 422
  • Interface 2: RS 232 for service and configuration
  • Sampling rate 1 ms

Options

10: RS 422 instead of CAN interface

11: Bus operation

12: Higher display resolution

13: Binary I/O channels (4-fold)

14: Filling algorithm

25: Dead load compensation

32: Built in test weight for high structured shape (flat structured shape on request)



With the optional CFI (CAN-Fieldbus-Interface) it is possible to connect to a variety of industrial fieldbus systems.

To be used in

  • Filling machines for vials, syringes, etc.
  • Packaging machines
  • Capsule and tablet weighing machines

Models of MTC-HL-FS Series

TypeWeighing RangeLoad RangeDisplay Value
MTC-HL-250/100-FS250 g50 - 100 g0.001 g
