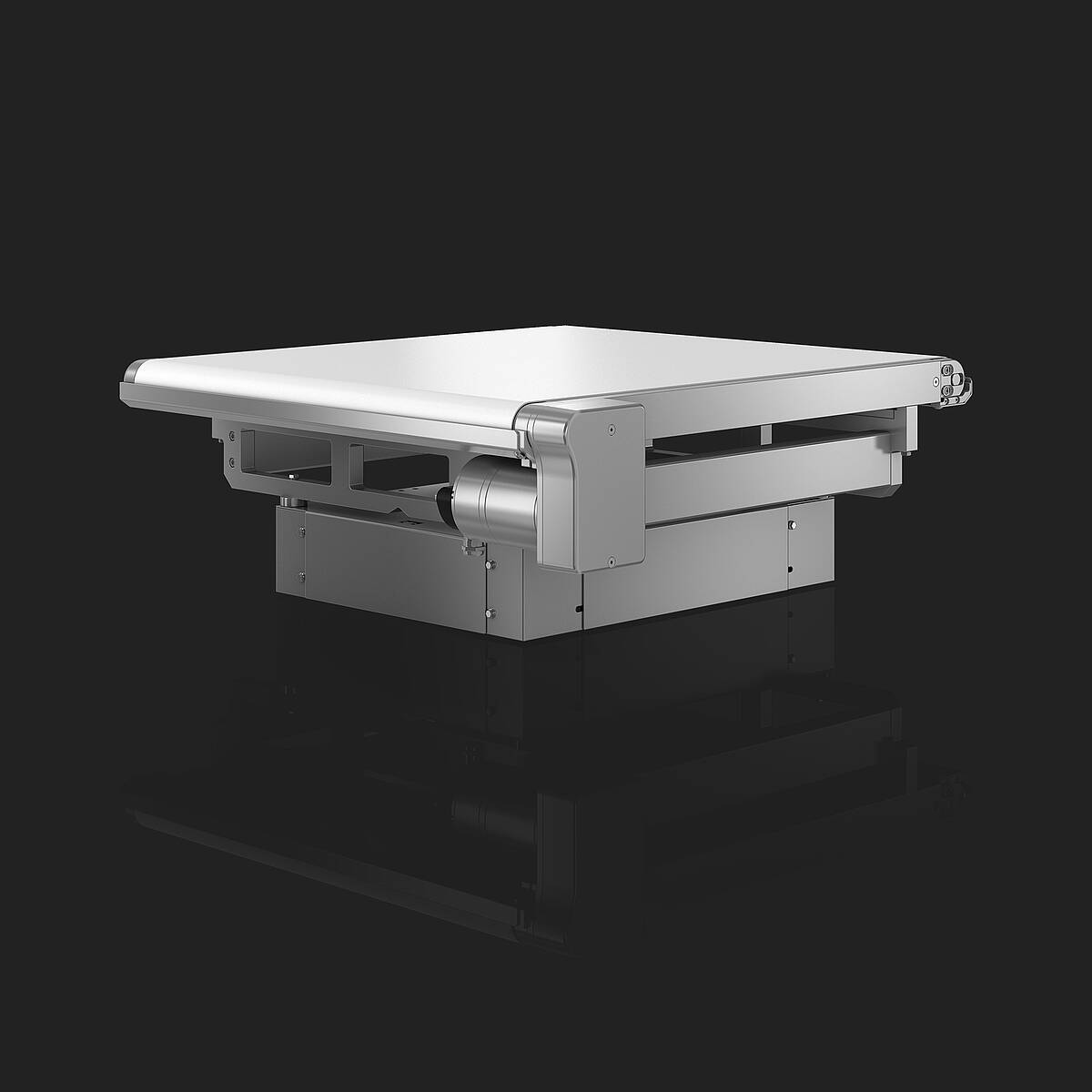

Weighing Kit
IW-B-FS + NT46

Weighing kits, consisting of an IW-B-FS Weigh Cell and NT46 conveyor, cover a vast range of possible uses. They are widely used in applications that require both robust and high-precision design. The IW-B-FS Weigh Cell can be used for a huge variety of weighing and dead load ranges.

Weighing range up to 120 kg

In addition, the available conveyor widths and lenghts cover the common application specific requirements. The belt with a roller diameter of 46 mm meets the expectations of a stable de-sign and the requirement for robustness and precision. All weighing-relevant components are produced in-house and are subject to the highest quality standard in order to de-sign the Weighing kit for the intended purpose and to achieve the best possible weighing result.

Performance

Max. weighing range (g)120,000
Display value (g)0.1
Max. dead load range (g)150,000
IP (protection class)65

To be used in

  • Completeness check
  • Checkweighers (for various sectors such as food, chemicals, pharmaceuticals, cosmetics, etc.)
  • Filling and packaging machines
  • Custom machine engineering

Features

  • Wide range of applications
  • Large choice of weighing ranges
  • 46 mm roller diameter for optimum product handling
  • Variable belt dimensions
  • Tool-free belt change
  • Application specific conveyor dimensi-ons
  • Stepless, maintenance-free servomotor optimized for high-precision weighing applications
  • Interface for communication with Weigh Cell and servomotor (CAN, RS422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT, Powerlink)

Technical Data

High Precision Weighing Conveyor

Belt WidthBelt Length
300 mm1400 mm / 500 mm
400 mm2500 mm / 600 mm
500 mm2600 mm / 700 mm
600 mm2700 mm / 800 mm

Infeed and outfeed conveyor

Belt WidthBelt Length
300 mm1400 mm / 500 mm
400 mm2500 mm / 600 mm
500 mm2600 mm / 700 mm
600 mm2700 mm / 800 mm



1 only in cmbination with EC-4000-FS weigh cells
2 only in combination with IW-B-30k-FS or IW-B-60k-FS weigh cells
