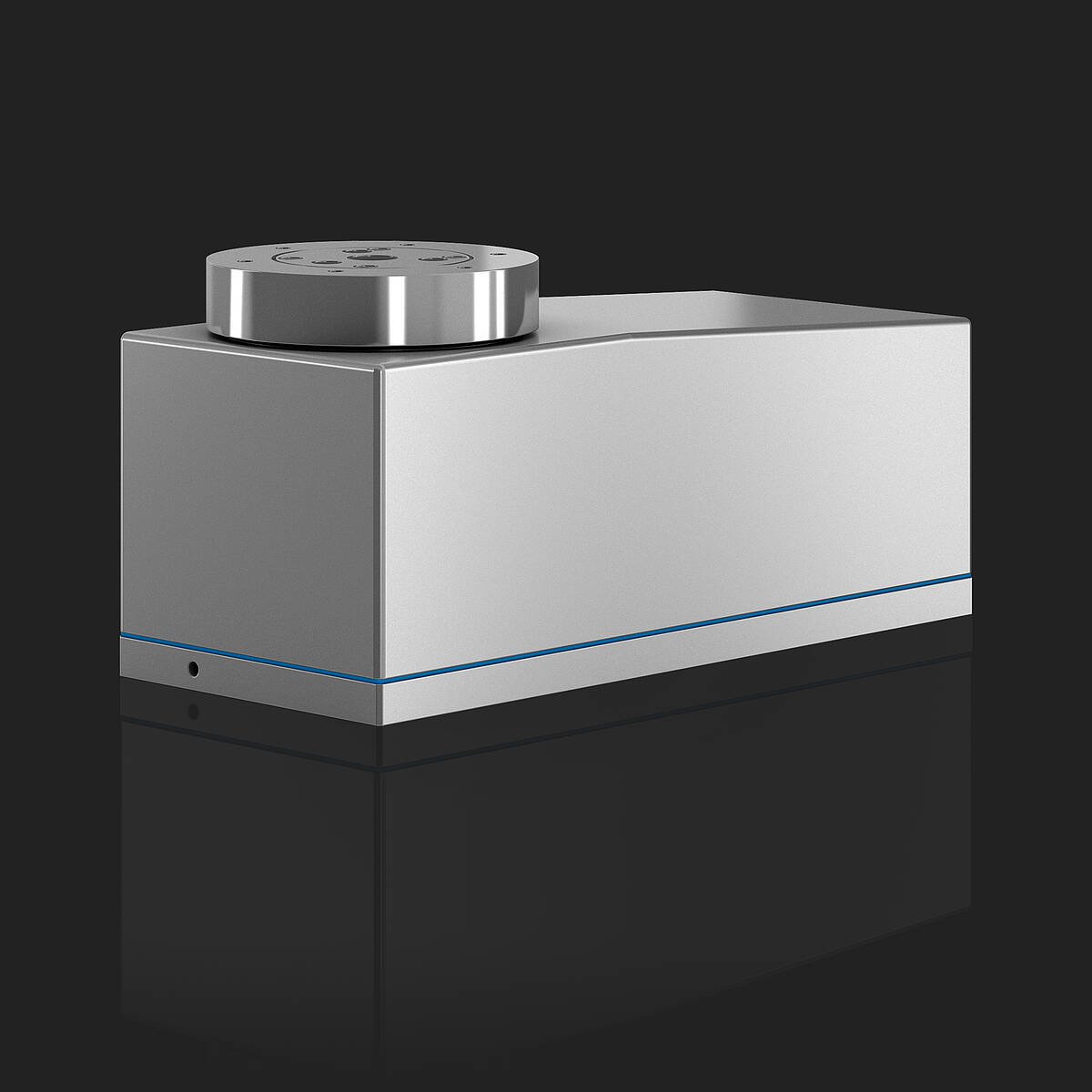

Weigh Cell EC-ES-FS

The EC-ES-FS Weigh Cell series covers the weighing range up to 7,500 g. They have been specifically designed as compact sensor components, which are suited for installation into Checkweighers. By using a GMP-compliant design, all Weigh Cells are especially suitable for Wash Down applications.

The large additive dead load range favors the mounting of conveyor belts or weighing platforms without limiting the weighing range.

Weighing range up to 7,500 g

As ready-to-connect modular component the Weigh Cell delivers final weight values via CAN interface as a standard feature. The integrated software filters can be configured in many ways, enabling optimal adaptation of the weighing system to the respective ambient conditions. The Weigh Cells extensive command set facilitates simplified control engineering integration. Complemented by a variety of options, the Weigh Cell can also fulfill very specific requirements.

You need an individual solution? Please contact us.

Performance

Max. weighing range (g)7,500
Display value (g)0.05
Max. dead load range (g)15,000
IP (protection class)69K

Technical Data

Features

  • Weighing range up to 7.5 kg, covered by 2 models
  • Additive dead load range up to 15 kg
  • Stainless steel housing IP69K Wash Down
  • Interface 1: CAN, RS 422
  • Interface 2: RS 232 for service and configuration
  • Sampling rate 1 ms

Options

2: Forceless connection of electrical aggregates

10: RS 422 instead of CAN interface

11: Bus operation

12: Higher display resolution (standard)



With the optional CFI (CAN-Fieldbus-Interface) it is possible to connect to a variety of industrial fieldbus systems.

To be used in

  • Checkweighers
  • Wash Down applications
  • Custom machine engineering
  • In Process Controls (IPC)

Models of EC-ES-FS Series

TypeWeighing RangeLoad RangeDisplay Value
EC 4000-3-ES-FS3,750 g12,000 g0.05 g
EC 4000-2-ES-FS7,500 g15,000 g0.1 g
