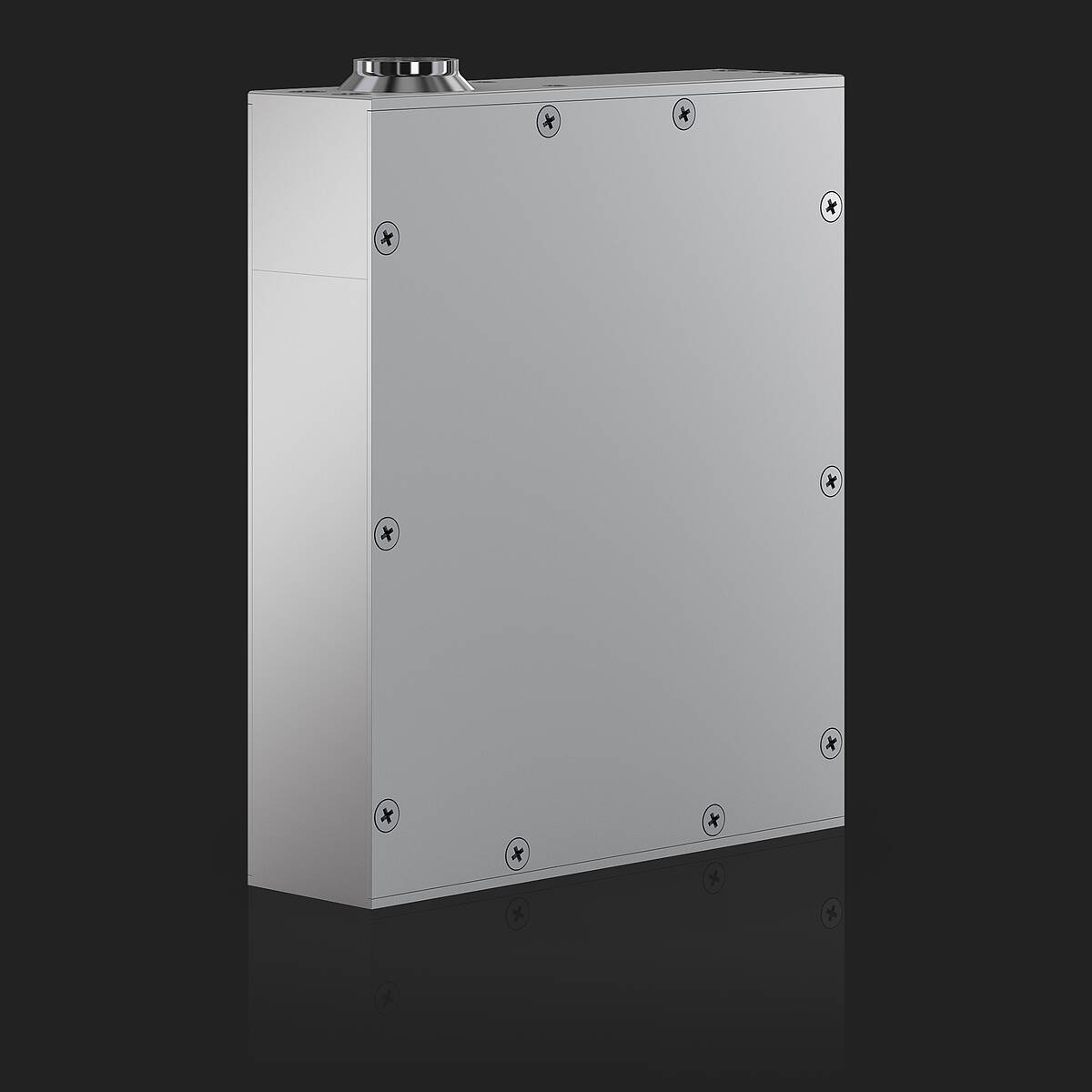

Weigh Cell SL-E

The SL-E Weigh Cell covers the weighing range up to 70 g. It has been specifically designed as a compact sensor component and is especially suited for installation in multilane applications with centreline distance of 29 mm or more.

The SL-E Weigh Cell is ideal for integration into production machines for tea and coffee capsules.



Weighing range up to 70 g

It can be raised in time with the machine cycle to ensure that the capsule is discharged as necessary from the transport plate for weighing. Systeminduced active self-damping guarantees the shortest possible measuring times while maintaining the highest resolution. All the necessary functional elements are integrated in a compact housing. No other external components are necessary.

The Weigh Cell is connected using customary standard cables.

Performance

Max. weighing range (g)70
Display value (g)0.001
Min. dead load range (g)25
IP (protection class)40

Technical Data

Features

  • Weighing range up to 70 g
  • Minimum dead load 25 g
  • Very slim construction in aluminum housing with integrated electronics
  • Multilane applications starting from 29 mm centerline distance
  • Interface 1: CAN
  • Interface 2: RS 232 for service and configuration
  • Sampling rate: 1 ms
  • MMS capable (Modular Multilane System)

Options

11: Bus operation

13: Binary I/O channels (1 input/2 outputs)

34: Interface connection at the bottom



With the optional CFI (CAN-Fieldbus-Interface) it is possible to connect to a variety of industrial fieldbus systems.

To be used in

  • Tea and coffee capsule machines
  • Multilane weighing systems
  • In-Process-Control applications
  • Custom machine engineering
  • Filling and packaging machines

Models of SL-E Series

TypeWeighing RangeLoad RangeDisplay Value
SL 70/25-E70 g25 g0.001 g
