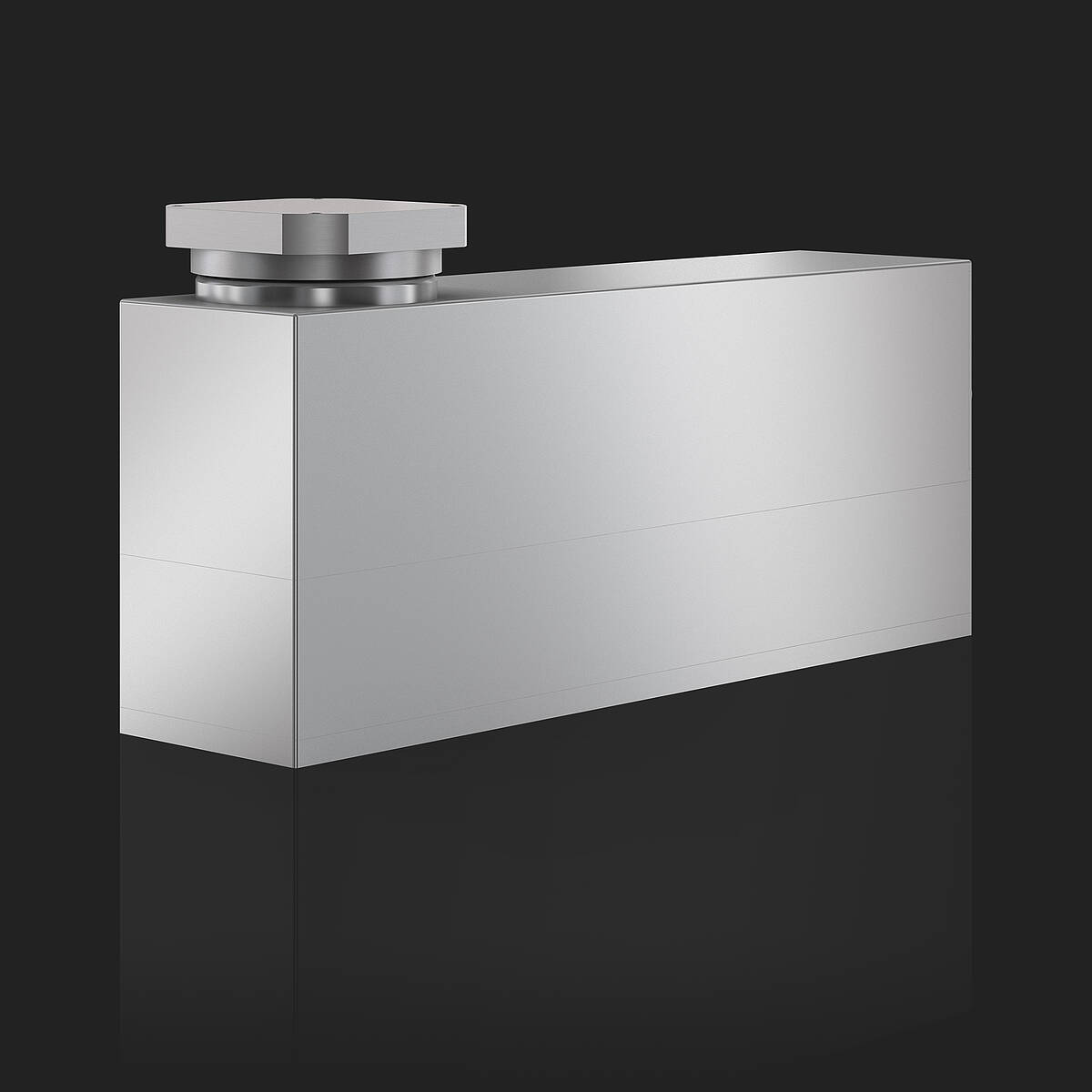

Weigh Cell SW-FS

The SW-FS Weigh Cell series covers a weighing range up to 2,000 g. They have been specifically designed as a compact sensor component and are especially suited for installation in multilane applications or anywhere that small sizes are in demand. Due to the GMP-compliant design, the Weigh Cells are also suited for use in the pharmaceutical industry.

Weighing range up to 2,000 g

As a ready-for-connection installation component, the Weigh Cell already supplies final weight values via a CAN interface as standard. The integrated software filters can be configured in many ways thus allowing optimal adaptation of the weighing system to the relevant local conditions. The Weigh Cells extensive command set enables easy control engineering integration. Supplemented with a large number of options, the Weigh Cells can also meet very specific requirements.

You need an individual solution? Please contact us.


Max. weighing range (g)2,000
Display value (g)0.00005
Max. dead load range (g)2,000
IP (protection class)44

Technical Data


  • Weighing range up to 2,000 g, covered by 7 models
  • Additive dead load range up to 2,000 g
  • Slim construction
  • Multilane applications starting from 60 mm centerline distance
  • Binary I/O channels with customer-specific functions
  • Interface 1: CAN , RS 422
  • Interface 2: RS 232 for service and configuration
  • Sampling rate: 1 ms


2: Forceless connection of electrical aggregates

10: RS 422 instead of CAN interface

11: Bus operation

12: Higher display resolution

13: Binary I/O channels (4-fold)

14: Filling algorithm

25: Dead load compensation

34: Interface connection at the bottom


With the optional CFI (CAN-Fieldbus-Interface) it is possible to connect to a variety of industrial fieldbus systems.

To be used in

  • Filling and packaging machines
  • Checkweighers (for different branches like food, pharmaceuticals, chemical and cosmetics)

Models of SW-FS Series

TypeWeighing RangeLoad RangeDisplay Value
SW 20/150-FS20 g150 g0.00005 g
SW 50/300-FS50 g300 g0.0001 g
SW 100/400-FS100 g400 g0.0002 g
SW 200/600-FS200 g600 g0.0005 g
SW 500/1000-FS500 g1,000 g0.001 g
SW 1000/1000-FS1,000 g1,000 g0.002 g
SW 2000/2000-FS2,000 g2,000 g0.005 g
