Weighing Kit
EC-FS - Solution with Chain Belt Technology

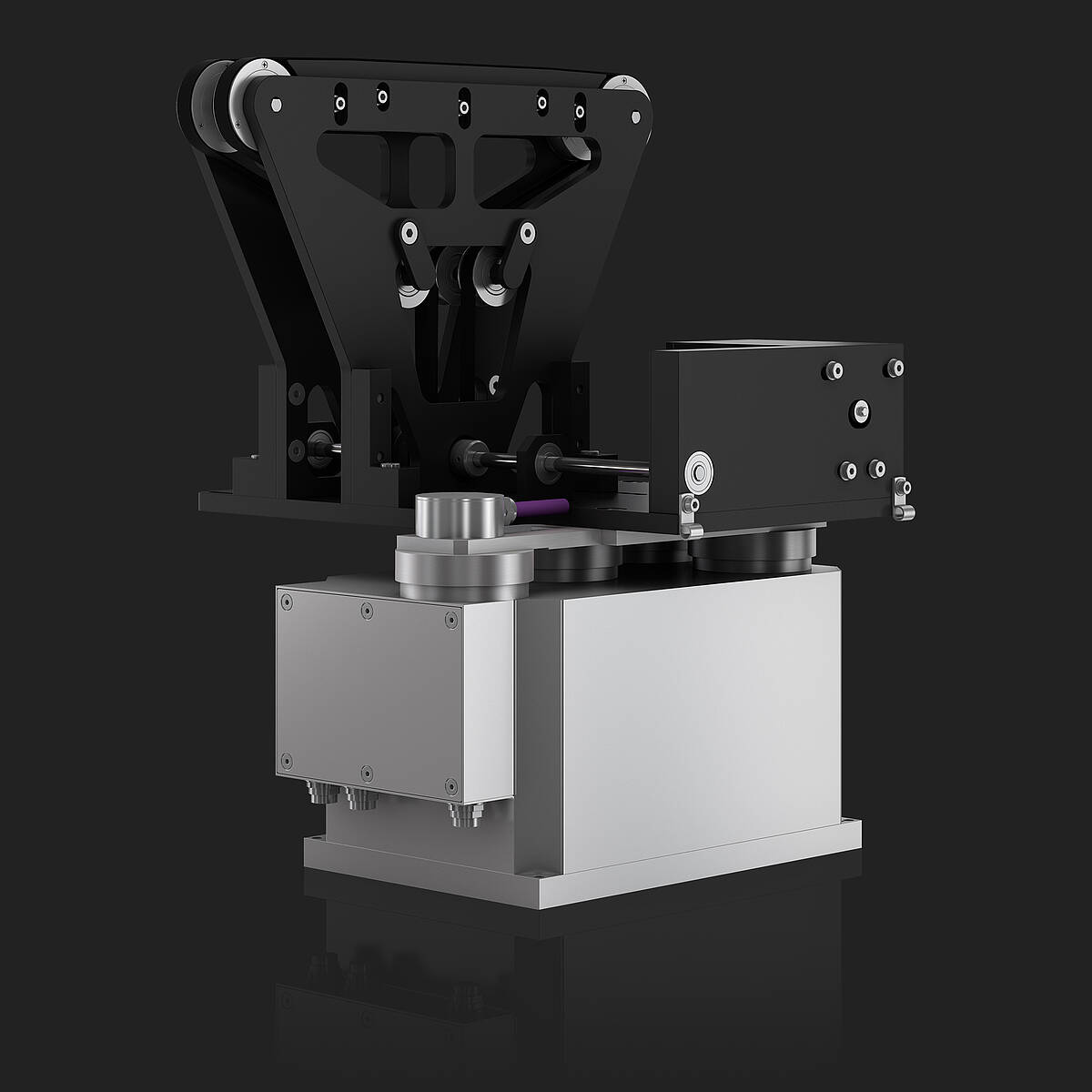

Weighing kits, consisting of an EC-FS Weigh Cell and a special weighing conveyor, cover a range of applications designed for integration in existing chain conveyor systems. The EC-FS Weigh Cell can be used for a huge variety of weighing and dead load ranges.
Weighing range up to 15 kg
The special weighing conveyor is available in two versions for products from 45 to 165 mm diameter and can easily be adapted to an existing chain conveyor. All weighing-relevant components are produced in-house and are subject to the highest quality standard in order to design the weighing kit for the intended purpose and to achieve the best possible weighing result. In addition, the Weigh Cell can be equipped with Active Vibration Compensation (AVC) to ensure optimum weighing even in environments with strong vibrations.
Performance
| Max. weighing range (g) | 15,000 |
| Display value (g) | 0.01 |
| Max. dead load range (g) | 15,000 |
| IP (protection class) | 65 |
To be used in
- Filling, dosing and counting machines
- Checking of cans, bottles and other cylindrical products
- Checkweighers (for various sectors such as pharmaceuticals, food, chemicals, cosmetics, etc.)
Features
- Application specific weighing ranges
- Large choice of weighing ranges
- Protection class IP54
- Active Vibration Compensation (AVC) as an option
- Anodized aluminum conveyor construction
- Stepless, maintenance-free servomotor, optimized for high-precision weighing applications
- Interface for communication with Weigh Cell and servomotor (CAN, RS422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT, Powerlink)
Technical Data
Weighing Conveyor
| Product Size | Conveyor Length |
|---|---|
| Diameter 45-120 mm | 300 mm |
| Diameter 60-165 mm | 300 mm |
