Reliable bone detection under high-performance conditions
Detecting bones in poultry products is particularly challenging. Compared to materials such as metal or glass, bones have significantly lower absorption properties, making them harder to identify using conventional systems.
As Jakob Limlei, Head of Business Development & Key Accounts at Wipotec, explains:
“Bones are particularly difficult to detect due to their low absorption. With our DFXr and MFXr sensor technologies, we achieve resolutions starting from 0.1 mm – specifically optimized for weakly absorbing materials such as bones.”
Even at throughput rates of up to 200 product units per minute per lane, the SC-F maintains a consistently high level of detection accuracy. This enables reliable inspection even in high-performance production environments.
Specialized inspection for maximum process reliability
Combining X-ray inspection and checkweighing in one system

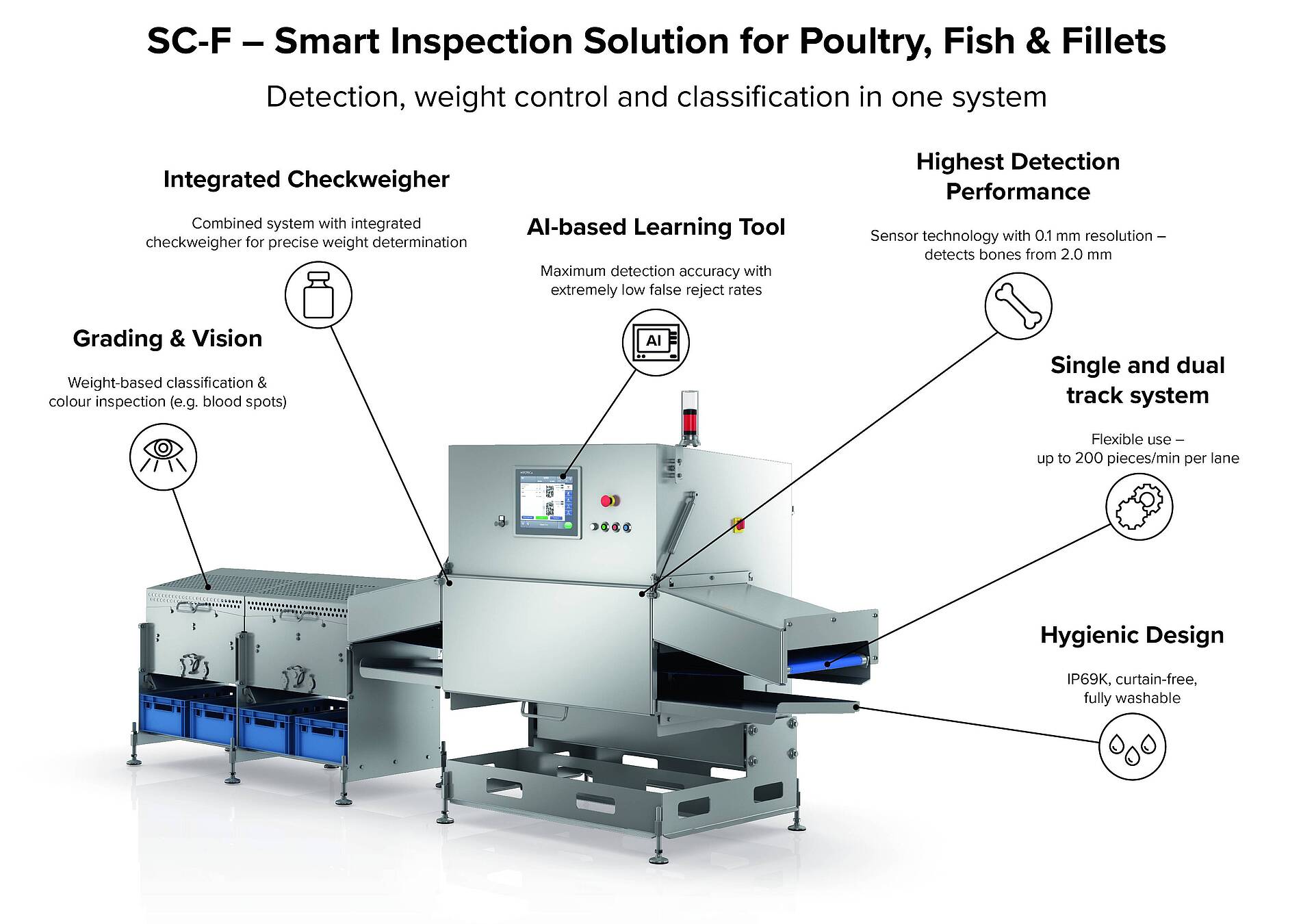

A key advantage of the SC-F lies in the integration of MFXr sensor technology with a high-precision checkweigher. This combination allows inspection and evaluation to take place in a single step.
The system offers a weighing accuracy of 0.5 g within a range of 30 to 1,500 g. At the same time, the MFXr technology ensures reliable differentiation between actual foreign bodies and non-critical product structures.
An additional benefit is the integrated grading function: based on the measured weight, products are automatically classified within the system. This reduces manual effort, increases transparency and supports consistent quality control processes.
Hygienic design for demanding production environments
The SC-F has been consistently designed to meet the requirements of food processing environments. The entire housing is made of high-quality stainless steel (1.4301), while protection class IP69K ensures full resistance to high-pressure and hot water cleaning.
The product area is free of dead spaces and designed to prevent residue buildup. This enables fast, safe and efficient cleaning processes – a critical factor in daily operation.
In addition, the system can be seamlessly integrated into existing production lines. Available as a single-lane or dual-lane configuration and equipped with standard reject systems, the SC-F offers maximum flexibility for both new installations and retrofits.
Flexibility through AI-supported product handling
Frequent product changes are part of everyday operations in modern food production. The SC-F addresses this challenge with an AI-supported training function.
New products are automatically analyzed, and optimal inspection parameters are set without manual intervention. Up to 100 products can be stored in the system, with further expansion available on request.
This significantly reduces setup times and makes the system particularly suitable for production lines with frequently changing batches.
Specialized inspection for maximum process reliability
Minimizing false rejects while maintaining maximum safety
False rejects represent a significant cost factor, especially for high-value poultry products. The SC-F uses artificial intelligence to continuously optimize inspection parameters and distinguish between actual hazards and harmless product characteristics.
According to Jakob Limlei:
“Our system learns to differentiate between real contaminants and non-critical structures. This minimizes false rejects without compromising product safety.”
The combination of precise X-ray technology, intelligent software and finely tuned mechanics ensures maximum efficiency and reliability.
Additional inspection capabilities with integrated vision
Beyond traditional X-ray inspection, the SC-F offers an optional integrated vision function. This enables the detection of visual deviations such as blood spots or color irregularities – particularly relevant for natural poultry products.
This additional inspection layer is especially valuable in applications where not only internal quality but also visual appearance is critical, such as in premium product segments.
A fully integrated approach to poultry inspection
With the SC-F, Wipotec delivers a system that combines multiple inspection and quality assurance functions into a single, compact solution. From precise bone detection and integrated checkweighing to AI-supported optimization and optional vision inspection, the system addresses key challenges in modern poultry processing.
For manufacturers, this means enhanced product safety, improved efficiency and greater transparency across the entire production process – all within a system designed for long-term reliability and performance.
