The Big Picture of Weigh Cell Flexibility
Weigh Cells form the foundation of countless machines and systems, but their real strength lies in their ability to adapt. Whether used individually or as part of a modular multi-lane system (MMS2), the whole becomes greater than the sum of its parts. The MMS2, implemented in protection class IP65, allows greater freedom in installation and ensures that systems can be configured with precision and efficiency.
Modular Multi-Lane Systems (MMS2)
At the core of the Wipotec Weigh Cell universe lies the MMS 2. As the second generation of modular multi-lane systems, it is implemented in protection class IP65 and offers even more freedom in installation. At lane level, its modular design allows space-saving and lane-accurate combinations of units, with individual modules arranged side by side at precise measuring points.
Electronic modules for Weigh Cells and AVC sensors can be mounted quickly and easily, while the base module supplies operating voltage and ensures connectivity to fieldbus and analysis interfaces.
Interface and Connectivity Options
Today’s most important topic—until harmonization is achieved—is interface diversity. Wipotec Weigh Cells support a wide range of communication protocols, including CANopen, EtherNet/IP, EtherCAT, Profinet IO, Powerlink, RS422, and Profibus DP. This flexibility ensures smooth integration into existing systems and creates room for future-oriented concepts.

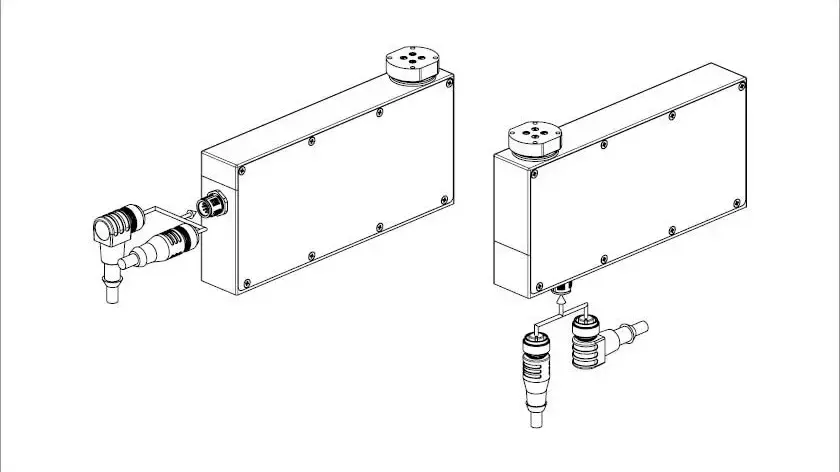

In addition, machine builders benefit from versatile connection options. Depending on the installation concept, connections can be placed at the rear or bottom, with straight or angled connectors for maximum design freedom. Whatever the system architecture, Wipotec Weigh Cells adapt seamlessly.
Active Vibration Compensation (AVC)
As standard, all Wipotec Weigh Cells are equipped with Active Vibration Compensation (AVC). This proprietary sensor-based technology filters out impulse forces and disruptive vibrations caused by feed axes, drive units, or imbalances. The result is stable, highly precise weighing results, even under the most demanding production conditions.
By eliminating application-specific vibrations, AVC enables reliable performance across industries—from pharmaceuticals and food to chemicals, logistics, and beyond. It is a key enabler of Quality Assurance 4.0.
Wash-Down Capability
High-precision weighing technology and wet cleaning are not mutually exclusive. With wash-down options for both stainless steel and aluminum Weigh Cells, Wipotec ensures protection up to IP65—and for special applications, even IP69K.
This guarantees better performance in cleaning processes and makes the Weigh Cells particularly suitable for hygienic multi-lane systems in the pharmaceutical and food industries.
Flexible Installation Possibilities

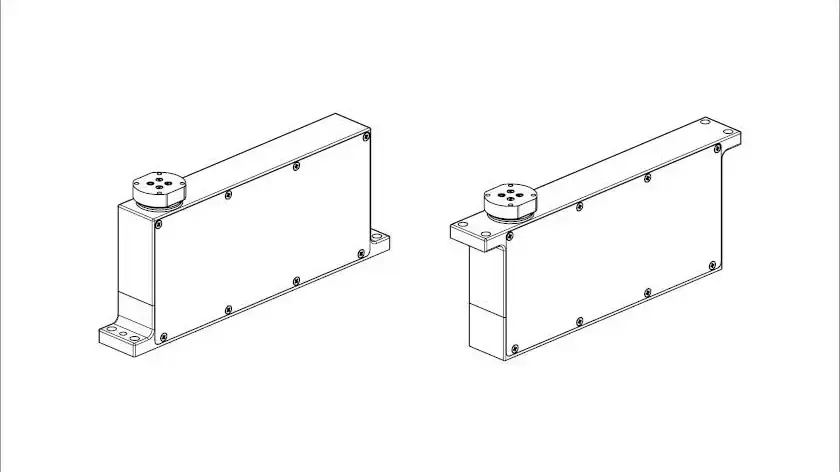

Wipotec Weigh Cells provide unlimited freedom of installation. Mounting flanges can be positioned on top or bottom for efficient, space-saving integration into complex machine layouts.

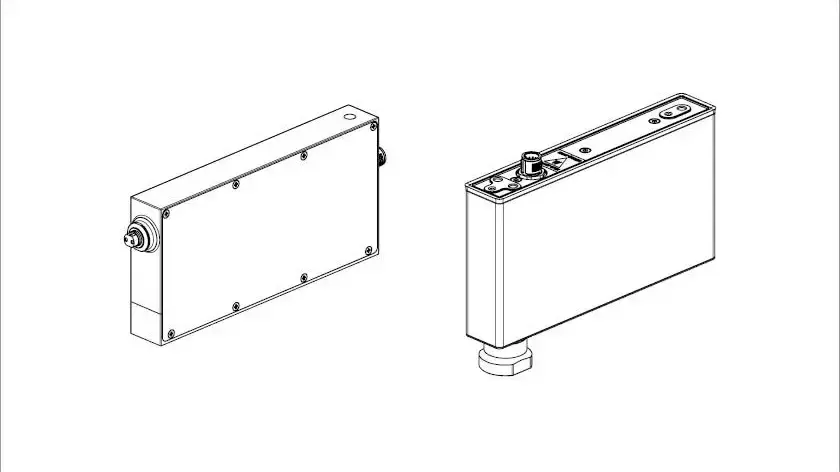

And beyond the standard top-load setup, Wipotec enables front-load or upside-down operation, giving machine builders even greater flexibility to implement innovative designs.
Shaping the Future of Machine Design
From modular multi-lane scalability to interface diversity, AVC, wash-down protection, and installation freedom, Wipotec Weigh Cells embody the principle of limitless flexibility. They provide machine builders and manufacturers with the confidence to design systems that are precise, robust, and ready for the challenges of tomorrow.
